Automatic Busbar Inspection Machine with High Voltage Withstanding Insulation Resistance Grounding Test Functions
Busbar bending machines from us set the industry standard in precision and reliability. Whether you’re bending copper busbar, aluminum bar, steel bar, or any type of metal bar stock, our proprietary technology delivers the consistency and efficiency that today’s businesses demand.
Overview
- The equipment is used for busbar online inspection.
- To improve the busbar production level and quality.
- To decrease the labor’s working force and improve the working efficiency and production efficiency.
Busbar Inspection Machine Function introduction

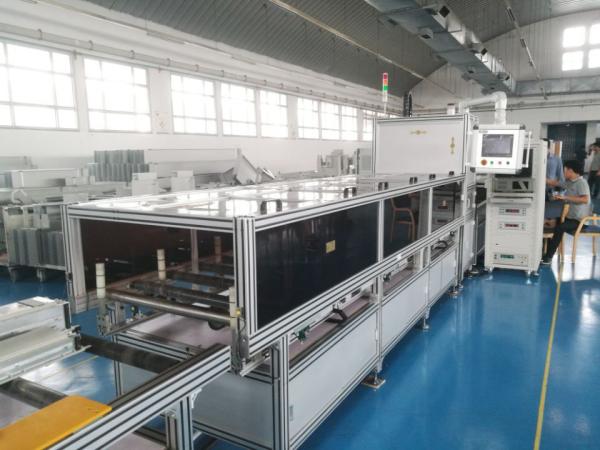

Busbar Automatic Production Line is composed of three parts, feeding positioning station, inspection station and discharge station. When the busbar enters the feeding position, the control system will select the right testing fixture to start testing from the information identified by bar code or previous assembly line. Three tests will be performed including HV withstanding test, insulation resistance test and grounding test. After test is finished, testing report will be generated.
Busbar Inspection Machine Equipment data on automatic busbar inspection line
| No. | Parameters |
| Model | KD-JCX/NC-E/H-6 |
| Busbar Height | 100mm~650mm |
| Busbar Length | 1200mm~6000mm |
| Busbar Type | Straight length type |
| Position Type | Unilateral / Middle |
| Working Efficiency | 2 min/piece(testing time is adjustable.) |
| Servo Nos | 2 axis( Z axis/X axis) |
| Vision System | Phase error judgment( optional) |
| Printing System | Bar code printing/ Report printing( optional) |
| High Voltage Withstanding Test | 0~5000V |
| Insulation Test | 1~1000V |
| Grounding Test | 0~25A |
| Power | 380~415VAC 50~60Hz 5kW |
| Equipment Dimension | L12000mm*W1200mm*H1900mm |
