Precision Semi Automatic Busbar Assembly Line For Busbar Reversal
| No. | Parameters |
| Model | KD-ZDX/H-4-6(4.5) |
| Max. Busbar Height | 330mm (Single Layer) |
| Max. Busbar Length | 6000mm |
| Working Efficiency | Around 3000mm/4min |
| Riveting Machine | Not included |
| Rotator Nos | 4 sets (standard) |
| Length of Reversal Part | 4500mm |
| Manual Lifting Fixture Nos | 3 pieces |
| Manual Operation Station Length | 1500mm |
| Hanger Material | Aluminum hanger |
| Riveting Type | Manual riveting |
| Power | 380~415VAC 50~60Hz 5kW |
| Equipment Dimension | L18000mm*W800mm*H1900mm |
Function introduction
Semi-automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station.
Pre-assembly station: Operators will pre-assemble and fix busbar main parts by the fixtures and transfer the busbar to the automatic reversal station manually.

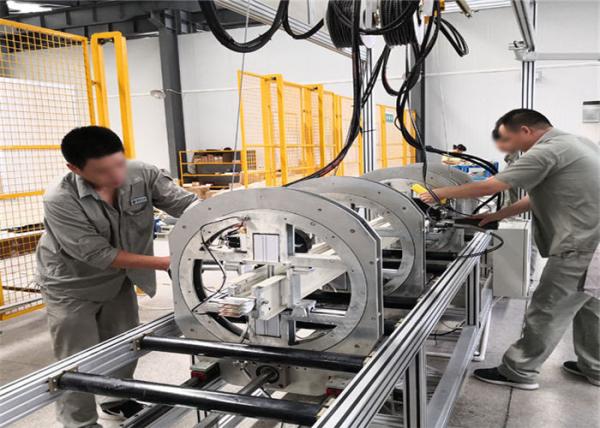

Automatic reversal station: When busbar arrives in the reversal station, operator shall fix the busbar by clamp and start riveting on one side. After one side is done, rotators will be reversed 180 degrees for other side’s riveting.
Accessory assembly station: After busbar is riveted, operator will assemble the busbar accessories at this station.
Equipment data on semi-automatic busbar assembly line
